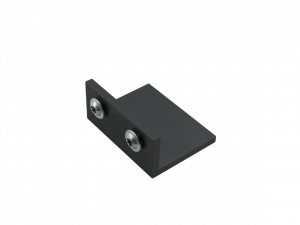

ZVM-Mounting Adapter SmartGrid 90°

mounting incl. M6 screws for fixation to SmartGrid as a handle for Universal Robot (UR)
M6 screws can also be used to fix the SmartGrid to the robot flange
90° angled

Objednací číslo: 11700549
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Karel Fintes

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

karel.fintes@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Mechanické parametry

Rozměry:	65 mm × 50/30 mm × 5 mm
Hmotnost:	≤ 73 g
Materiál:	aluminum (anodized, black)
