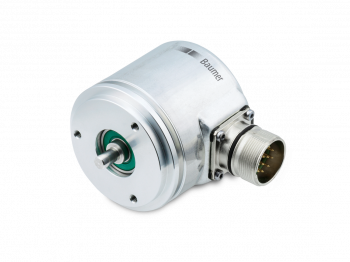

GI357

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Encoder with solid shaft ø10 mm or ø6 mm
Max. 5000 pulses per revolution
Optical sensing method
Clamping or synchro flange
High rotation speed up to 10000 rpm
Compact design
For safety-relevant applications in compliance with SIL2 (Safety Integrity Level 2)

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	24 VDC +20/-50 %
Ochrana proti přepólování:	Yes
Spotřeba:	≤30 mA
Pulzů na otáčku:	5 - 5000
Referenční signál:	Zero pulse 70...720° electr. (Option)
Typ snímání:	Optical
Výstupní frekvence:	≤150 kHz
Výstupní signál:	A 90° B + inverted
Výstupní signál \| rozhraní:	Linedriver/RS422 Push-pull short-circuit proof
Bezpečnostní provozní údaje:	Encoder operating life: 20 years PFH: 1.16E-08 1/h SFF: >90 %
Odolnost proti rušení dle:	EN 61000-6-2 IEC 61326-3-1
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL approval / E63076 SIL2 according to DIN EN 61508

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø6 mm solid shaft (synchro flange) ø10 mm solid shaft (clamping flange)
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Příruba:	Clamping or synchro flange
Ochrana EN 60529:	IP 54 (without shaft seal) IP 65 (with shaft seal)
Provozní rychlost:	≤10000 rpm
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54) ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	14.5 gcm²
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-25...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 100 g, 6 ms
Připojení:	Connector M12, 8-pin Connector M23, 12-pin
Přibližná hmotnost:	250 g

Nákresy

Výkresy

GI357-MZ-X-01.png | stáhnout (png, 2025-07-11 22:52:16)
GI357-MZ-X-02.png | stáhnout (png, 2025-07-11 22:52:28)
Servoflansch-MZ-X-04.png | stáhnout (png, 2025-07-11 16:37:19)
Steckeranschl-MZ-X-01.png | stáhnout (png, 2025-07-11 22:45:55)

Ke stažení

Datový list

Data sheet – GI357 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:28:52)
Data sheet – GI357 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:28:52)

Rychlý start

GI357 | stáhnout | zobrazit (DE/EN, pdf, 2025-04-11 11:28:52)

Certifikáty/ osvědčení

UL certificate E63076 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:26:34)
TÜV certificate | stáhnout | zobrazit (DE/EN, pdf, 2025-04-11 11:28:52)

Prohlášení o shodě

DoC / CoC - GI357 / EIL576S-S | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:28:52)

Příslušenství

Obsahuje:Montážní příslušenství Konektory a kabely Kabely s volným koncem

Montážní příslušenství

Foto	Produkt (6)
	Adaptor plate for clamping flange to convert into synchro flange Obj. číslo: 10141255
	Adaptor plate for clamping flange, mounting by eccentric fixings (order separately) (Z 119.025) Obj. číslo: 11034088
	Bearing flange for encoders with synchro flange (Z 119.035) Obj. číslo: 10158124
	Mounting adaptor Obj. číslo: 10125051
	Mounting adaptor Obj. číslo: 10117667
	Set of eccentric fixings type A Obj. číslo: 11065545

Konektory a kabely

Další podobné produkty naleznete v kategorii: Konektory M23 / kabely

Foto	Produkt (4) / Popis	Skladová dostupnost
	Female connector M23, 12-pin, 10 m cable (Z 141.007) Obj. číslo: 11034204 Female connector M23 with screwable nut With or without cable (shielded) in different lengths Cable version: shield is placed onto the connector housing	na dotaz
	Female connector M23, 12-pin, 2 m cable (Z 141.003) Obj. číslo: 10166044 Female connector M23 with screwable nut With or without cable (shielded) in different lengths Cable version: shield is placed onto the connector housing	na dotaz
	Female connector M23, 12-pin, 5 m cable (Z 141.005) Obj. číslo: 10124780 Female connector M23 with screwable nut With or without cable (shielded) in different lengths Cable version: shield is placed onto the connector housing	na dotaz
	Female connector M23, 12-pin, without cable (Z 141.001) Obj. číslo: 10127371 Female connector M23 with screwable nut With or without cable (shielded) in different lengths Cable version: shield is placed onto the connector housing	na dotaz

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (42) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A8-11232237 Obj. číslo: 11232237 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11232697 Obj. číslo: 11232697 M12, female, A-coded; 8-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232698 Obj. číslo: 11232698 M12, female, A-coded; 8-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232699 Obj. číslo: 11232699 M12, female, A-coded; 8-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232700 Obj. číslo: 11232700 M12, female, A-coded; 8-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232701 Obj. číslo: 11232701 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232702 Obj. číslo: 11232702 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232703 Obj. číslo: 11232703 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232705 Obj. číslo: 11232705 M12, female, A-coded; 8-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232706 Obj. číslo: 11232706 M12, female, A-coded; 8-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232707 Obj. číslo: 11232707 M12, female, A-coded; 8-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232708 Obj. číslo: 11232708 M12, female, A-coded; 8-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232709 Obj. číslo: 11232709 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232710 Obj. číslo: 11232710 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232711 Obj. číslo: 11232711 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232713 Obj. číslo: 11232713 M12, female, A-coded; 8-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232714 Obj. číslo: 11232714 M12, female, A-coded; 8-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232715 Obj. číslo: 11232715 M12, female, A-coded; 8-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232716 Obj. číslo: 11232716 M12, female, A-coded; 8-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232717 Obj. číslo: 11232717 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232718 Obj. číslo: 11232718 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232719 Obj. číslo: 11232719 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232721 Obj. číslo: 11232721 M12, female, A-coded; 8-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232722 Obj. číslo: 11232722 M12, female, A-coded; 8-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232723 Obj. číslo: 11232723 M12, female, A-coded; 8-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232724 Obj. číslo: 11232724 M12, female, A-coded; 8-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232725 Obj. číslo: 11232725 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232726 Obj. číslo: 11232726 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232727 Obj. číslo: 11232727 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11233242 Obj. číslo: 11233242 M12, female, A-coded, 8-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A8-11233243 Obj. číslo: 11233243 M12, female, A-coded, 8-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A8-11233244 Obj. číslo: 11233244 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233245 Obj. číslo: 11233245 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233246 Obj. číslo: 11233246 M12, female, A-coded, 8-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A8-11233247 Obj. číslo: 11233247 M12, female, A-coded, 8-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A8-11233249 Obj. číslo: 11233249 M12, female, A-coded, 8-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A8-11233250 Obj. číslo: 11233250 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233251 Obj. číslo: 11233251 M12, female, A-coded, 8-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A8-11233252 Obj. číslo: 11233252 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233253 Obj. číslo: 11233253 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233254 Obj. číslo: 11233254 M12, female, A-coded, 8-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A8-11233255 Obj. číslo: 11233255 M12, female, A-coded, 8-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
