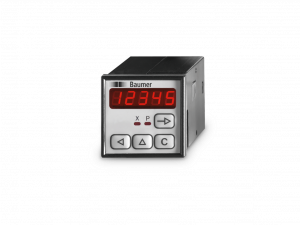

NE210

NE210
  • Preset counter with one preset
  • Display 5-digits
  • Operating mode, start count, scaling factor programmable
  • Connection: Incremental encoder or digital sensors
  • Time meter with four time ranges
  • Time relay with operation and release delay
  • Programmable as a time counter
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek
Ondřej Štěpánek
Produktový manažer
BAUMER
Ondřej Štěpánek - QR Kontakt
+420 733 101 651
ondrej.stepanek@ajptech.cz
Parametry
Nákresy
Ke stažení
Podpora
Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:
  • 85...265 VAC
  • 24 VDC ±10 %
Spotřeba energie:
  • 5 VA
  • 5 W
Napájení:
  • 85...265 VAC: 24 VDC ±20 %/100 mA
  • 24 VDC: 24 VDC ±20 %/100 mA
Displej: LED, 7-segment display
Počet číslic: 5-digits
Velikost číslic: 7.6 mm
Funkce:
  • Preset counter
  • Main counter with 1 preset
Nastavení rozsahu: 0.001...99.999
Režim čítání:
  • Adding or subtracting
  • Difference counting A-B
  • Total (parallel) A+B
  • Up/Down
  • A 90° B phase evaluation
Čítací frekvence: 15 Hz, 10 kHz (set by Dip switch)
Předvolba: 1 preset
Pracovní režim:
  • Main preset
  • Time meter / time relay
Uchovatelnost dat: >10 years in EEPROM
Tlačítko reset: Button, electric or automatic
Typ elektronického výstupu: NPN / PNP transistor switch
Výstupní relé: Change-over contact, floating
Nastavitelná doba trvání výstupu: 0.01...99.99 s
Splňující normu DIN EN 61010‑1: ISO 16750-2 (Electrical loads)
Vyzařované rušení dle: EN 61000-6-4
Odolnost proti rušení dle: EN 61000-6-2
Programovatelné parametry:
  • Operating modes
  • Sensor logic
  • Scaling factor
  • Count mode
  • Time relay function
Schválení: UL approval / E63076

Mechanické provedení

Okolní teplota: 0...+50 °C
Skladovací teplota: -20...+70 °C
Relativní vlhkost: 80 % non-condensing
Připojení: Plug-in screw terminal connector
Rozdělení vodičů: 1.5 mm²
Ochrana EN 60529: IP 65 (face with seal)
Ovládání / klávesnice: Membrane with softkeys
Typ pouzdra: Built-in housing
Rozměry (Š x V x D): 48 x 48 x 108 mm
Hloubka osazení: 108 mm
Montážní typ: Clip frame for built-in housing
Montážní rozměr: 45 x 45 mm (+0.6)
Přibližná hmotnost:
  • 150 g (24 VDC/85-265 VAC)
  • 260 g (24/48 VAC)
Materiál:
  • Housing: Makrolon 6485 (PC)
  • Keypad: Polyester
