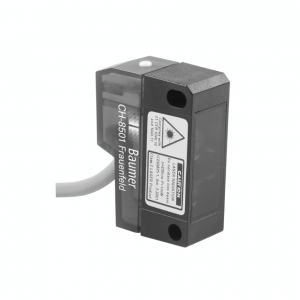

OPDK 14P3903 - Retro-reflective sensors - for longer ranges

OPDK 14P3903 - Retro-reflective sensors - for longer ranges
  • retro-reflective laser sensor
  • 4,5 m
  • pulsed red laser diode
  • PNP
  • Teach-in
  • cable 4 pin, 2 m
  • -10 … 50 °C
  • IP 67
Objednací číslo: 11001312
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Retro-reflective laser sensor
Verze:
  • Transparency object detection
  • Single lens optics
Zdroj světla: Pulsed red laser diode
Skutečný rozsah Sb: 4.5 m
jmenovitý rozsah: 5.2 m
Opakovatelnost: 0.1 mm at laser focus
Polarizační filtr: Yes
Světelný indikátor: LED yellow
Indikace napájení: LED green
Nastavení citlivosti: Teach-in
Třída laseru: 1
Vzdálenost k zaostření paprsku: 100 mm
Vlnová délka: 650 nm

Elektrické parametry

Doba odezvy: < 0.25 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Běžná spotřeba proudu: 25 mA
Pokles napětí Vd: <2.2 VDC
Výstupní funkce: Dark operate
Výstupní obvod: PNP
Výstupní proud: 100 mA
Uložení poslední hodnoty po vypnutí: Non volatile
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 14.8 mm
Výška | Délka: 43 mm
Hloubka: 31 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (ASA, MABS)
Materiál krycího skla: PMMA
Způsoby připojení: Cable 4 pin, 2 m

Okolní podmínky

Pracovní teplota: -10 - +50 °C
Třída krytí: IP 67
